產品名稱: CONQUER Micro Fuse 微小型保險絲
發布日期: 2018-05-08
點擊數: 6564
二維碼:
簡述: CONQUER Micro Fuse 微小型保險絲

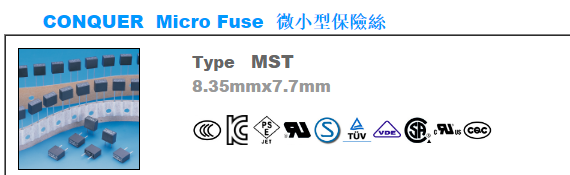

CONQUER Micro Fuse 微小型保險絲
產品規格屬性對照表(Product specifications attribute table) | ||||||||||||||||||
產品型號 Product Type |
印字 Printing |
額定電流 (A) |
額定電壓 (V) |
冷阻值 cold resistance |
最大電壓降 maximum voltage drop |
I2T值 I2T value |
分斷能力 Breaking capacity |
重量(單一產品) Weight(single product) |
||||||||||
MST .040 |
|
40 mA | 250V/300V | 12.864 | 600 | 0.0158 |
35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC |
0.36993 | ||||||||||
MST .050 |
|
50 mA | 250V/300V | 8.9 | 550 | 0.0225 |
35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC |
0.36993 | ||||||||||
MST .063 |
|
63 mA | 250V/300V | 5.4053 | 480 | 0.0446 |
35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC |
0.36993 | ||||||||||
MST .080 |
|
80 mA | 250V/300V | 3.687 | 400 | 0.076 |
35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC |
0.36993 | ||||||||||
MST .100 |
|
100 mA | 250V/300V | 2.4063 | 350 | 0.108 |
35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC |
0.36993 | ||||||||||
MST .125 |
|
125 mA | 250V/300V | 1.6194 | 300 | 0.1223 |
35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC |
0.36993 | ||||||||||
MST .160 |
|
160 mA | 250V/300V | 1.2458 | 280 | 0.17 |
35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC |
0.36993 | ||||||||||
MST .200 |
|
200 mA | 250V/300V | 0.824 | 260 | 0.306 |
35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC |
0.36993 | ||||||||||
MST .250 |
|
250 mA | 250V/300V | 0.63 | 240 | 0.6019 |
35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC |
0.36993 | ||||||||||
MST .315 |
|
315 mA | 250V/300V | 0.38 | 220 | 0.8216 |
35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC |
0.36993 | ||||||||||
MST .400 |
|
400 mA | 250V/300V | 0.27 | 200 | 1.4832 |
35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC |
0.36993 | ||||||||||
MST .500 |
|
500 mA | 250V/300V | 0.195 | 190 | 2.7 |
35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC |
0.36993 | ||||||||||
MST .630 |
|
630 mA | 250V/300V | 0.1322 | 180 | 3.1792 |
35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC |
0.36993 | ||||||||||
MST .800 |
|
800 mA | 250V/300V | 0.0907 | 160 | 5.76 |
35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC |
0.36993 | ||||||||||
MST 0.630 |
|
6.3 A | 300V | 0.0074 | 100 | 310.77 |
35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC |
0.36993 | ||||||||||
MST 001 |
|
1 A | 250V/300V | 0.075 | 140 | 8.73 |
35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC |
0.36993 | ||||||||||
MST 002 |
|
2 A | 250V/300V | 0.0316 | 100 | 36 |
35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC |
0.36993 | ||||||||||
MST 004 |
|
4 A | 250V/300V | 0.0136 | 100 | 158.4 |
35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC |
0.36993 | ||||||||||
MST 005 |
|
5 A | 250V/300V | 0.01 | 100 | 202.5 |
35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC |
0.36993 | ||||||||||
MST 008 |
|
8 A | 250V/300V | 0.0057 | 100 | 368.64 |
35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC |
0.36993 | ||||||||||
MST 010 |
|
10 A | 250V/300V | 0.0034 | 100 | 288 |
35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC |
0.36993 | ||||||||||
MST 1.25 |
|
1.25 A | 250V/300V | 0.055 | 130 | 14.766 |
35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC |
0.36993 | ||||||||||
MST 1.60 |
|
1.6 A | 250V/300V | 0.0425 | 120 | 23.04 |
35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC |
0.36993 | ||||||||||
MST 2.50 |
|
2.5 A | 250V/300V | 0.0241 | 100 | 56.25 |
35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC |
0.36993 | ||||||||||
MST 3.15 |
|
3.15 A | 250V/300V | 0.0188 | 100 | 93.768 |
35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC |
0.36993 | ||||||||||
MST 6.30 |
|
6.3 A | 250V/300V | 0.0074 | 100 | 310.77 |
35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC |
0.36993 |
